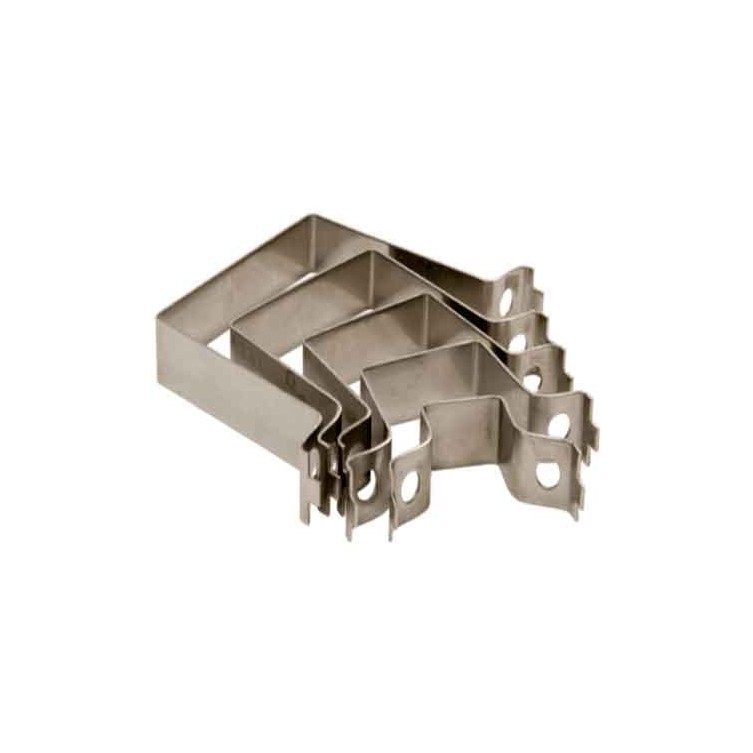

Standard RHS Clips

Product Description

Suitable for the smaller sizes of rectangular hollow sections sign post and supplied with 2 No M8 32mm bolt assemblies, including nut and washer.

NO MINIMUM ORDER QUANTITY. CARRIAGE CHARGE MAY APPLY!

Although available from stock in stainless steel finish, Signfix clips may be powder coated to blend in with particular colour schemes, and to reduce visual impact in environmentally sensitive areas. Contact us on 0121 506 4770.

Note

NEVER USE BOLTS WITHOUT THE WASHERS SUPPLIED, OR THE FIXING WILL NOT REMAIN SECURE.
WHERE INSERT PLATES ARE SUPPLIED WITH CLIPS THEY SHOULD ALWAYS BE USED.





Product Code & Specification

PART NUMSUITABLE FOR POST DIAMETERS (MM)BOX QUANTITY
LRH030330x30mm (1 3/16 x1 3/16″)100
LRH050550x50mm100
LRH060660x60mm100
LRH767676x76mm100
LRH080480x40mm (3 1/8 x 1 1/2″)100
LRH080880x80mm (3 1/8″ x 3 1/8″)100
LRH1005100x50mm (4×2″)100
LRH1010100x100mm50
Accreditations

Fully ISO 9001, 14001 & 18001 certified by BSI across all our sites. We are also proud members of Members of the ARTSM, HEA, NHSS, ILP and HERS
