Nuts, Bolts & Washers

Product Description

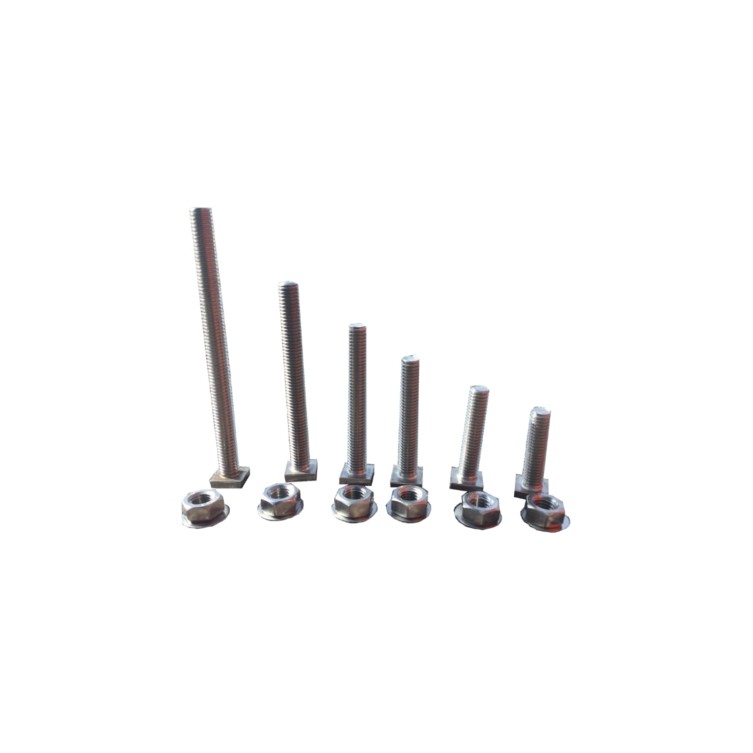

We offer a range of M8 bolt assemblies, which include nuts and washers. They can be used with our sign clip range.

Description

The bolts have a minimum tensile strength of 70N/mm2 and should be tightened up to the adequate torque load needed for the application. We have tested our range of clips against EN12899 using 18kN (a copy of the BSI report can be obtained if required). Bolts used are M8 grade 304 stainless steel A2 70 which have a minimum breaking torque of 32Nm.

Note

NEVER USE BOLTS WITHOUT THE WASHERS SUPPLIED, OR THE FIXING WILL NOT REMAIN SECURE.
WHERE INSERT PLATES ARE SUPPLIED WITH CLIPS THEY SHOULD ALWAYS BE USED.

Bolt Sizes & Guide
PRODUCT CODEBOLT TYPETHREAD DIAMETER (MM)LENGTH (MM)
M8-16Square Head816
M8-25Square Head825
M8-32Square Head832
M8-38Square Head838
M8-50Square Head850
M8-60Square Head860
M8-75Square Head875
M8-100Square Head8100
