Heavy Duty 2-Bolt ‘D’ Clip & Insert

Product Description

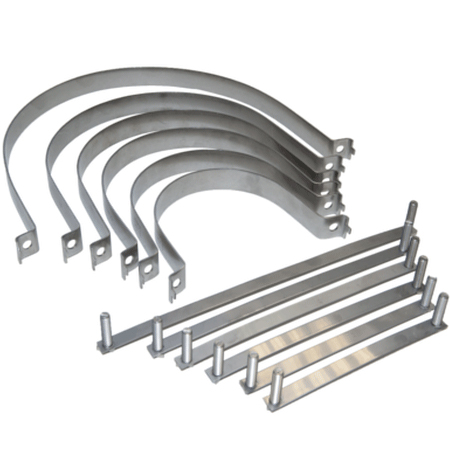

The heavy duty clips are supplied with 2 No. M8 bolt assembly, 32mm length as standard and an insert plate. Designed to be used on the larger diameter sign poles.

The Signfix Heavy Duty Sign Clip is manufactured from 25mm (1″) x 1.8mm (0.070″) thick AISI 304 Stainless Steel, heavy duty clips are supplied with 2 No. M8 bolt assembly, 32mm length as standard and an insert plate.

The bolts slot through and are attached to the insert plate and the unit is inserted into the channel as a whole. Insert plates should always be used with these clips. They are an essential element of the design and should not be discarded.

 Colour Co-ordinated

Although available from stock in stainless steel finish, Signfix clips may be powder coated to blend in with particular colour schemes, and to reduce visual impact in environmentally sensitive areas.

Product Code & Specification

PART NUMSUITABLE FOR POST DIAMETERS (MM)BOX QUANTITY
HDTB127127mm50
HDTB140140mm50
HDTB168168mm50
HDTB194194mm50
HDTB219219mm50
HDTB244244mm50
HDTB273273mm50
