Overhead Line Termination Box
Back to RangeConstructed from non-ferrous material to BS EN 61439-2:2011 and be impact resistant, minimum life expectancy of 15 years.
Overhead Line Termination Box
Shop Online
Click on the product categories to buy online!
Free Delivery
Free Delivery*
*available on selected products only
IP65
Dimensions shall be 180mm wide, 250 mm high and 100mm deep.

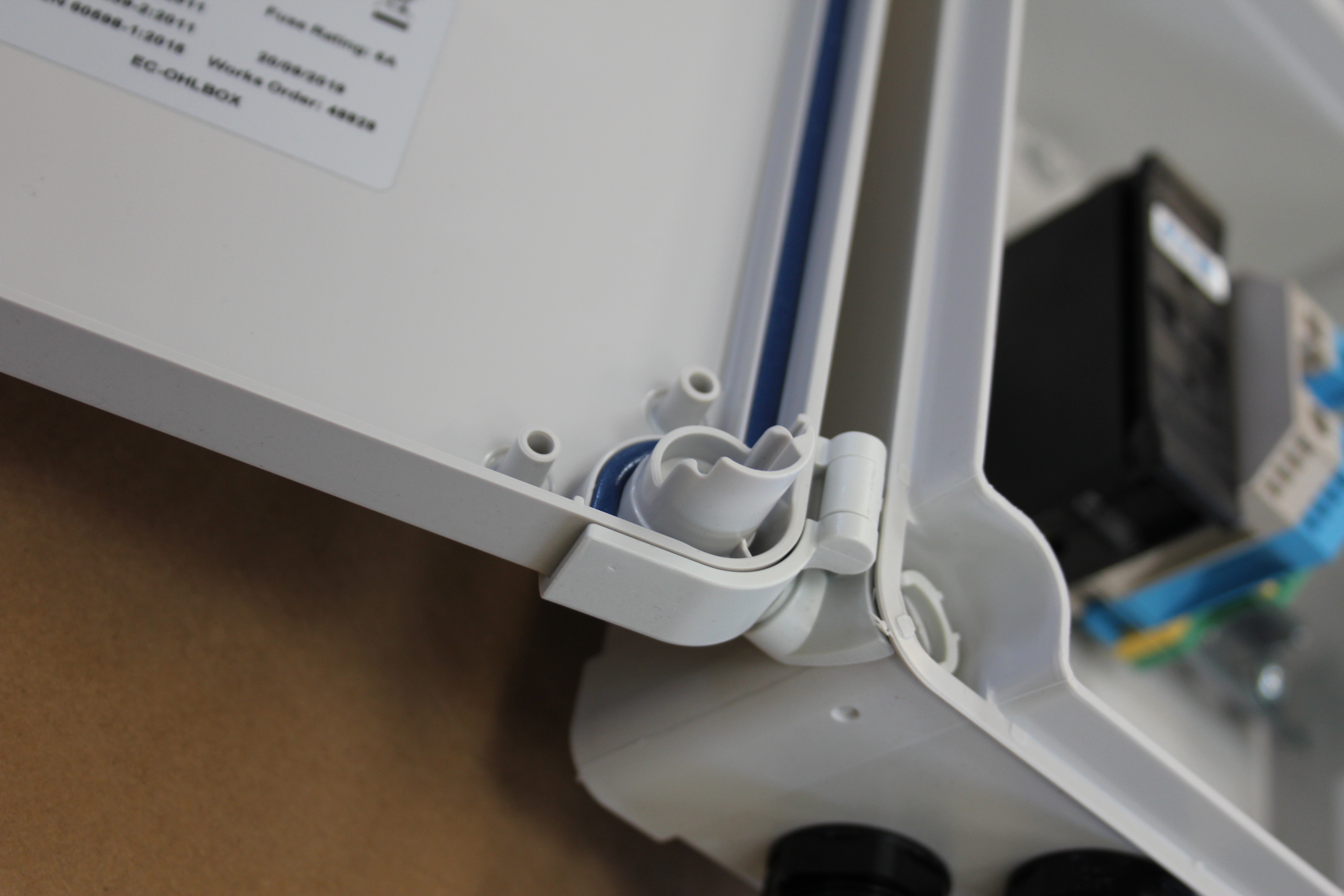

Door is hinged
Rear fixing bracket/s for securing it to a lighting column by two stainless steel straps.

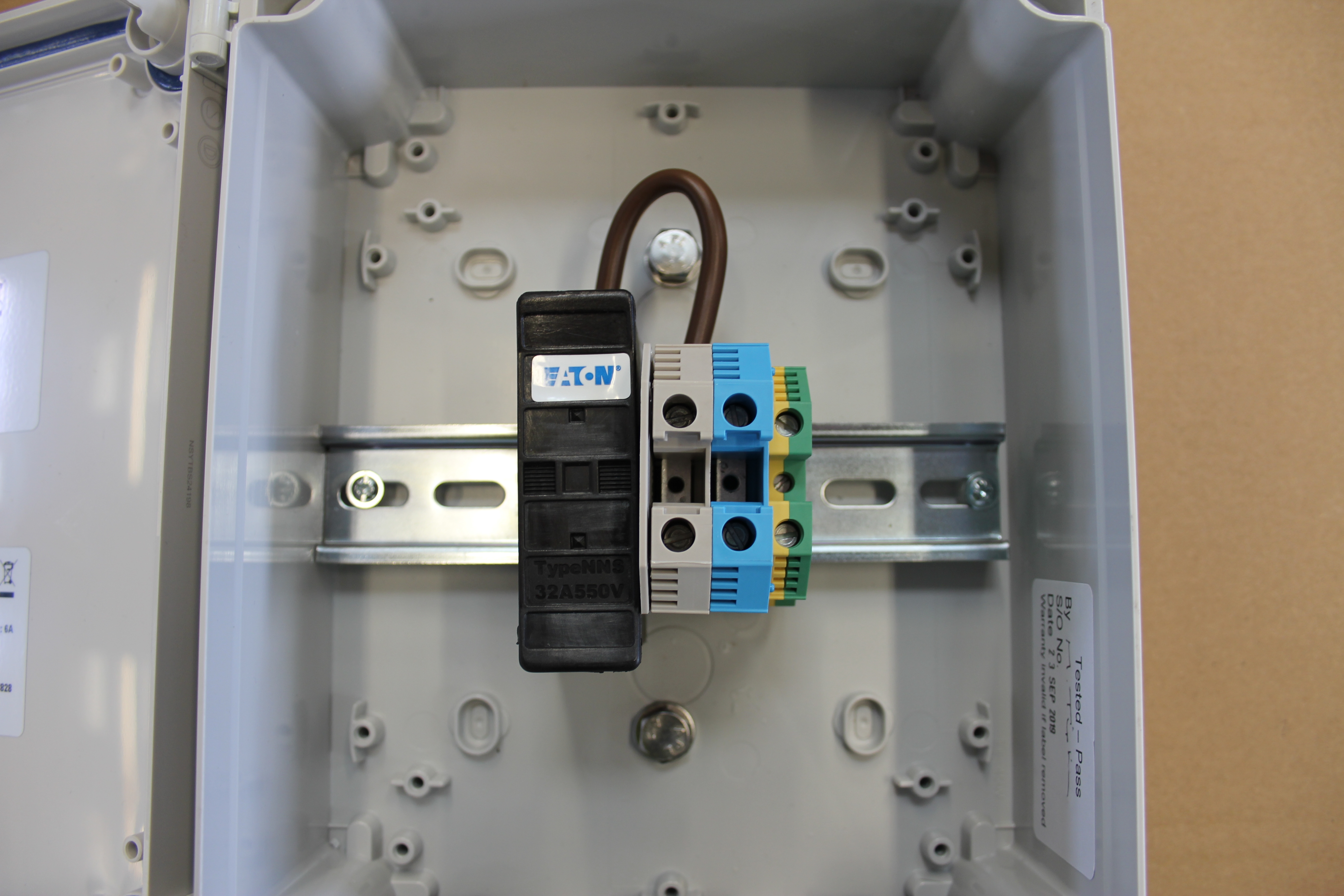

Fitted out with a DIN rail mounting having a fuse holder with 6 Amp BS 88 cartridge fuse fitted and three off termination units capable of accepting up to 16 sq. mm conductors.
The fuse holder is to be connected to the termination block by a 6 mm sq. conductor.
Nylon compression glands suitable for 4 no 16mm sq. single core overhead line cables and one no 2.5mm sq. 3 core flex (3183Y) are to be provided on the underside of the box.
