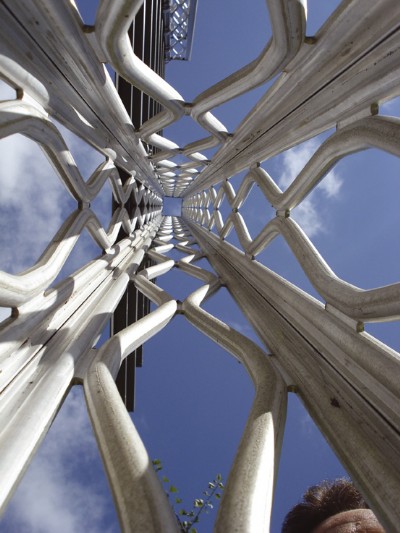

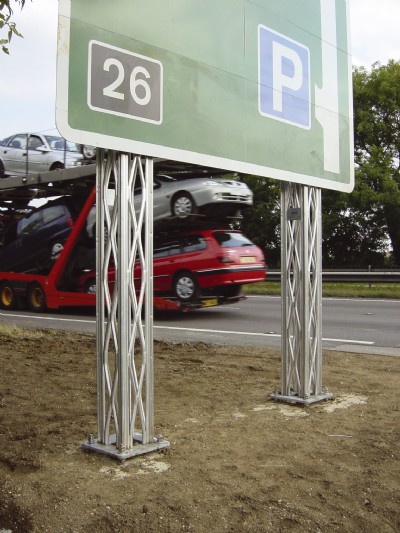

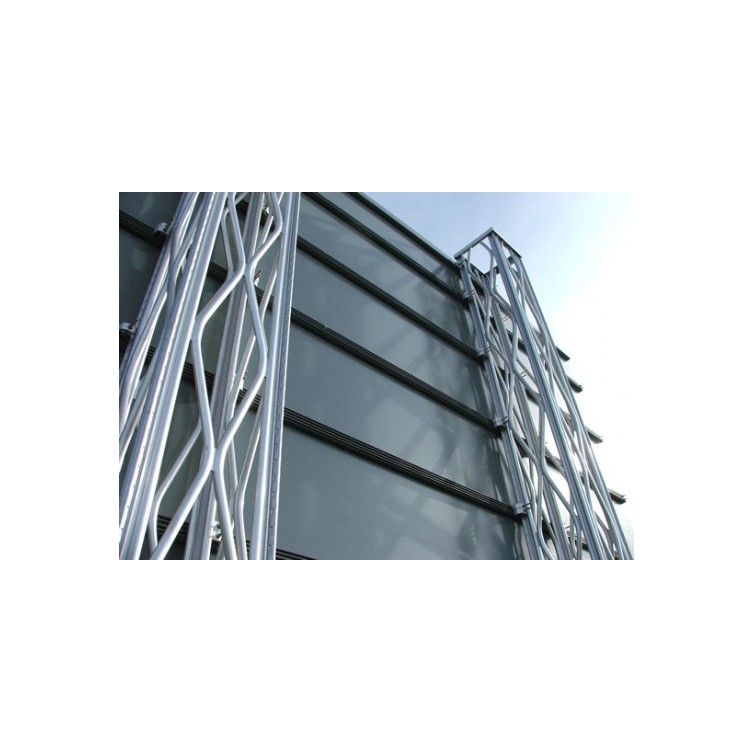

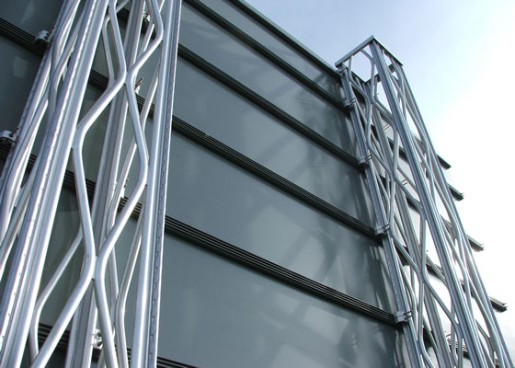

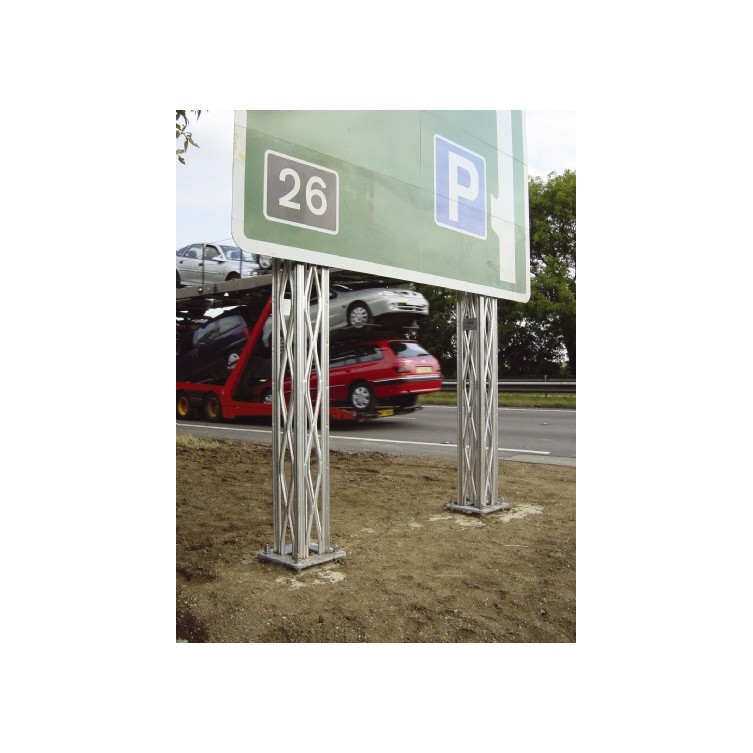

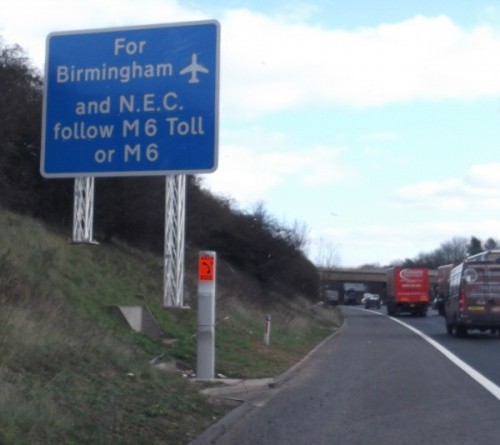

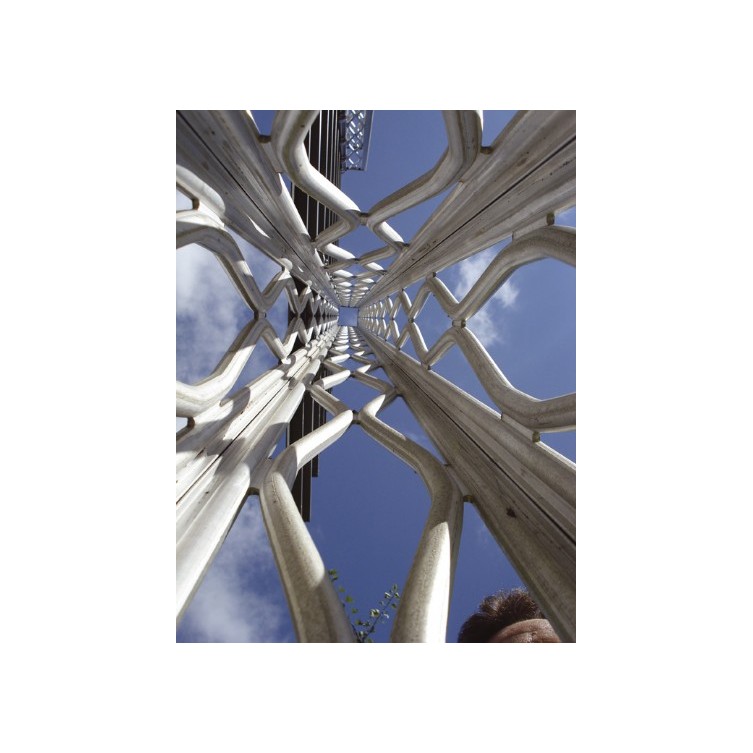

Manufactured from extruded aluminium, the complex lattice design is created by slotting and stretching the profile before mechanically forming the distinctive triangular or quadrangular posts.

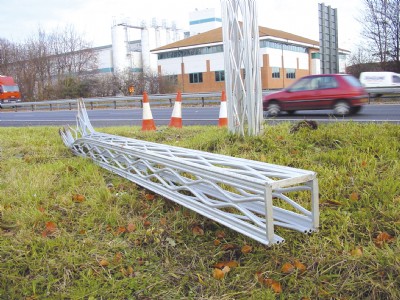

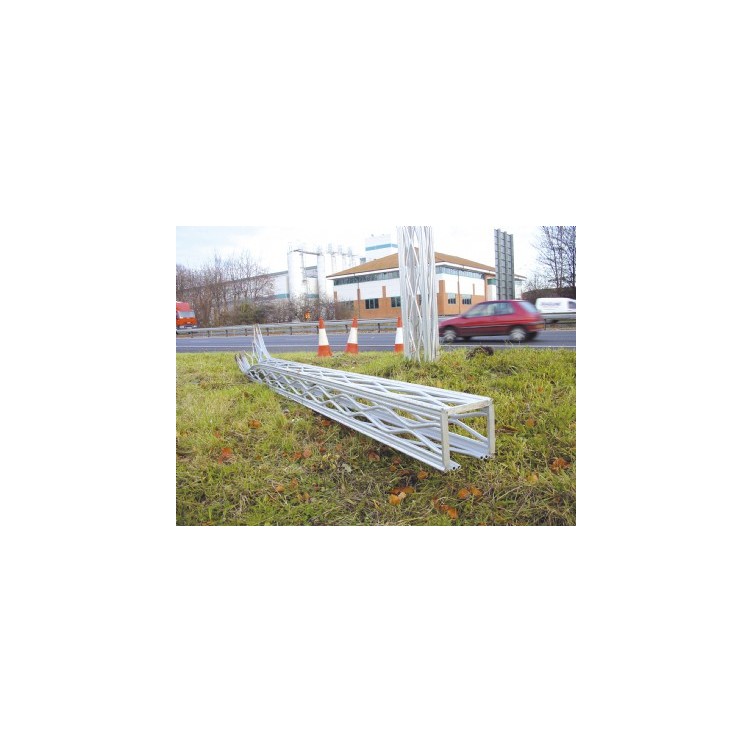

The mechanical strength used in the slotting and stretching procedure is directly responsible for the energy absorption properties of Lattix which allows the post to progressively crumple upon impact before shearing at specially designed points on the footplate.

This process of plastic deformation cushions the occupants from the massive deceleration forces that so often result in serious injury.

The Lattix range are fully crash tested to BS EN 12767 and has achieved a classification of 100NE:2

Shop Online

Click on the product categories to buy online!

Free Delivery

Free Delivery*
*available on selected products only

.

The products are Manufactured from extruded aluminium, the complex lattice design is created by slotting and stretching the profile before mechanically forming the distinctive triangular or quadrangular posts.

The mechanical strength used in the slotting and stretching procedure is directly responsible for the energy absorption properties of Lattix which allows the post to progressively crumple upon impact before shearing at specially designed points on the footplate.

This process of plastic deformation cushions the occupants from the massive deceleration forces that so often result in serious injury.

The Lattix range are fully crash tested to BS EN 12767 and has achieved a classification of 100NE:2











The Lattix Range of Masts

The Lattix range of masts comprises of 4 differing sizes which offers different wind capacities and strengths, we stock a range of heights of masts which can be cut down to suit all requirements. The naming of the masts is quite simple the first ‘4’ indicates the number of sides of the Mast and the last two figures; 12, 20, 25 and 38 are the length of each of those four side. Below are the 4 masts available.




You can view the videos below and click on the link here to view the Certificate of constancy of performance
